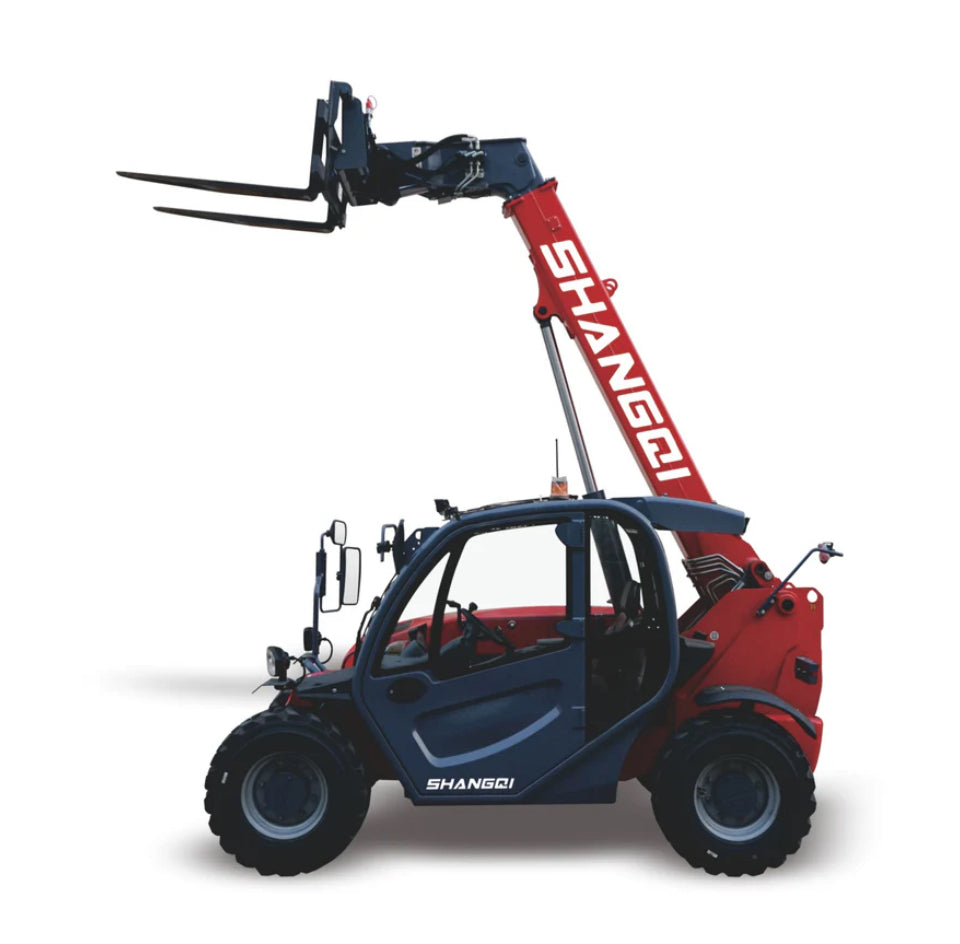

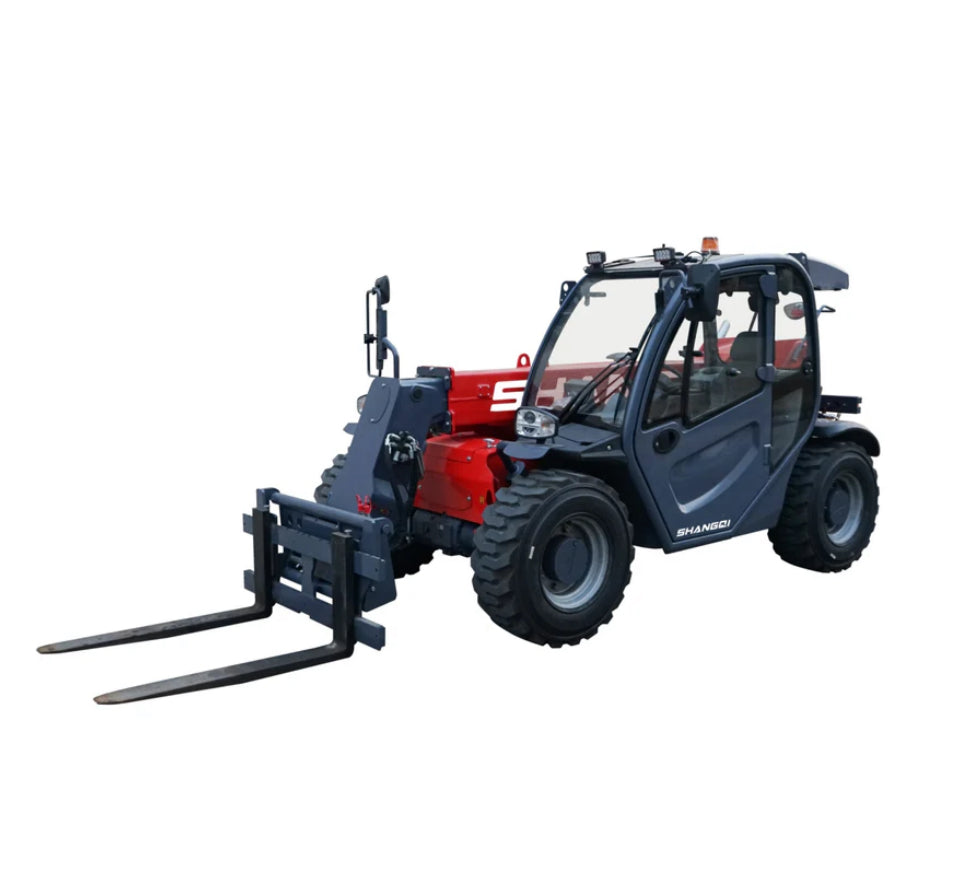

Chery Industrial TL875 19’ Telehandler (5,500 lb Capacity)

The TL875 5500lb/19 Ft. Telehandler by Chery Industrial is engineered for precision lifting and superior versatility in construction, agriculture, and industrial environments. Powered by a 74HP Kubota Tier 4 turbocharged diesel engine, this telehandler combines exceptional strength, stability, and reach. With a maximum lift height of 19 ft 3 in and forward reach of 11 ft 5 in, it delivers smooth, controlled handling of heavy loads up to 5,500 lbs.

Built for demanding worksites, the TL875 features a robust 4-wheel steering system, 21 GPM auxiliary hydraulic flow, and heavy-duty 14-ply tires for excellent traction and maneuverability. Its compact frame and low stowed height make it ideal for tight spaces while maintaining high lift performance. Whether you’re moving pallets, loading materials, or supporting job site operations, the TL875 ensures maximum productivity with minimal downtime.

Key Features:

• 74HP Kubota Tier 4 turbocharged diesel engine

• 5,500 lb max lift capacity with 19 ft 3 in lift height

• 11 ft 5 in forward reach for extended operation range

• 4-wheel steering for enhanced mobility

• 21 GPM auxiliary hydraulic flow and 3,408 psi pressure

• Heavy-duty 14-ply tires for rugged performance

• Ideal for construction, agriculture, and industrial applications

• Reliable, durable, and low-maintenance design

Specifications:

• Maximum Lift Height: 19 ft 3 in
• Maximum Forward Reach: 11 ft 5 in
• Maximum Lift Capacity: 5,500 lbs
• Lift Capacity at Max Height: 4,400 lbs
• Lift Capacity at Max Reach: 1,650 lbs
• Engine: Kubota Tier 4, 74HP Turbocharged Diesel
• Drive Speed: 16.7 mph
• Turning Radius: 10 ft 5 in (4-wheel steering)
• Auxiliary Hydraulic Flow: 21 GPM
• Hydraulic Pressure: 3,408 psi
• Fuel Tank Capacity: 18 gal
• Hydraulic Tank Capacity: 19.8 gal
• Tire Size: 12×16.5 in, 14 ply
• Overall Length (without forks): 12 ft 10 in
• Overall Width: 5 ft 11 in
• Height (stowed): 6 ft 5 in
• Ground Clearance: 1 ft 1 in
• Electrical System: 12V
• Power Source: Diesel
